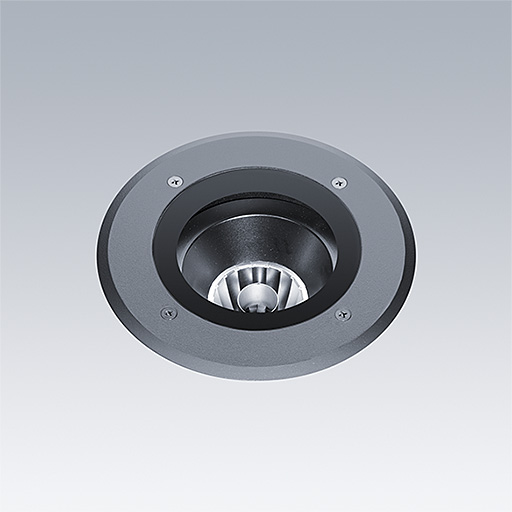

Cesar Opera, walk over
Cesar Opera Walk Over is a walk over in-ground luminaire perfect for urban areas, residential projects and public parks
- In-ground round luminaire available in five standard colours (stainless steel, grey, anthracite, black, white) and four sizes (small to extra large)
- Multiple light distributions available: wide diffused effect, narrow beam, medium beam, assymetric beam
- Tilt +/- 15° for Narrow - Medium Beam
- Tilt +/- 5° for Assymetric Beam
- Dostępność w wersji z 2700 K, 3000 K, 4000 K i CRI 90. Opcja RGBW jest dostępna w rozmiarze dużym i bardzo dużym.
- Cesar Opera Walk Over is available with Non-Dimmable or DALI2 connectivity (remote driver option for Small and Medium Size)
- Obciążenie = 1050 kg dla rozmiaru L i XL
- Obciążenie = 510 kg dla rozmiaru S i M
Wykonanie
Die-cast aluminium housing.
Front bezel in stainless steel A4 or aluminium.
Clear toughened glass.
Silicone gaskets.
Stainless steel A4 screws.
Double Powder paint process.
Polypropylene recess box.
Suitable for C3 (standard corrosion class according to ISO 9223 : 2012).
Montaż
Suitable for in-ground mounting with recessed box included.
Maximum cable size :
-Opera Opera S/M HF : 3 x 1mm² - 3 x 2,5mm². Pre-wired 0.5m.
-Opera Trim S/M RD : 2 x 1mm² - 2 x 2,5mm². Pre-wired 0.5m.
-Opera Trim L/XL HFX : 5 x 1mm² - 5 x 2,5mm². Pre-wired 0.2m.
Remote DALI-2 driver to be ordered separately for Small & Medium.
Remote DMX driver to be ordered separately for RGBW.
Opis
To specify state:
Round recessed luminaire in a walk-over version, compatible with the pedestrian walkway on the luminaire. Available in several sizes (S, M, L and XL) and five standard colours (grey, anthracite, black, white and stainless steel). Recessed box for installation is supplied with the luminaire. Several light distributions are available: narrow, wide, medium (L and XL only), asymmetrical (L and XL only). The optical module can be tilted (except for the wide beam).
Available in 2700K, 3000K and 4000K with a CRI of 90, ideal for residential or public applications. An RGBW version is also available on sizes L and XL to create colour changing scenarios for events.
Non-dimmable driver integrated on S and M versions, with the option of integrating DALI2 dimming via a remote driver to be controlled separately with an RD luminaire.
Integrated DALI2 driver on L and XL versions (except RGBW).
Robustness: IP67 & IK09.
As Thorn Cesar Opera Walk Over
