Axyl Trim

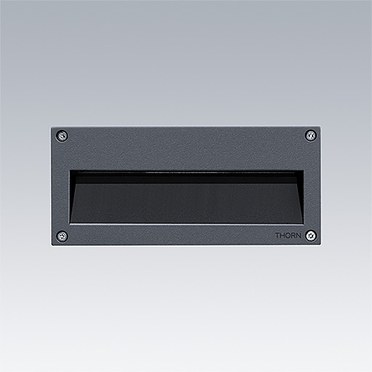

Axyl Trim is a classic recessed wall luminaire available in two sizes ideal for wayfinding applications

Recessed wall luminaire available in four standard colours (grey, anthracite, black, white). And two sizes, small square and large rectangle

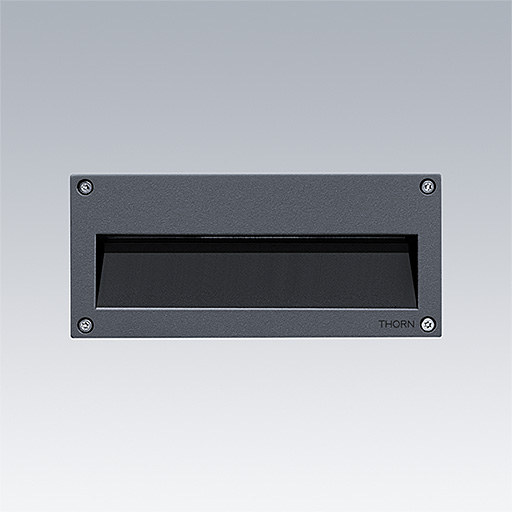

Multiple light distributions available via different cover. Opal for diffused lighting. Grid or baffle for an asymetric light distribution and a dark sky sensitive application
Dostępność w wersji z 2700 K, 3000 K, 4000 K i CRI 90
Axyl Trim is available with Non-Dimmable or DALI2 connectivity (remote driver option)

Wykonanie

Die-cast aluminium housing.
Silicone gaskets.
Stainless steel A4 screws.
Double Powder paint process.
Suitable for C3 (standard corrosion class according to ISO 9223 : 2012).

Montaż

Suitable for recessed mounting with recessed box to be ordered separately : 96700399 (S / Square) - 96700290 (L / Rectangle).
Fixing screws and washer delivered with product.
Maximum cable size :
-Axyl Trim S HF : 3 x 1mm² - 3 x 4mm²
-Axyl Trim S RD : 2 x 1mm² - 2 x 4mm²
-Axyl Trim L HF : 3 x 1mm² - 3 x 2,5mm²
-Axyl Trim L RD : 2 x 1mm² - 2 x 2,5mm²
Remote DALI-2 driver to be ordered separately.

Opis

To specify state:
Recessed wall luminaire available in rectangular or square shapes and in four standard colours (grey, anthracite, black, white). Axyl Trim is installed using a flush-mounted box (not supplied), which must be ordered separately. Several light distributions are available and linked to a different type of face : performance, opal, louvre, visor, barn doors to meet different needs.
Available in 2700K, 3000K and 4000K with a CRI of 90 ideal for residential or public applications.
Non-dimmable driver integrated, possibility of integrating DALI2 dimming via a remote driver to be controlled separately with an RD luminaire.
Robustness: IP65 & IK08.
Recessed box: 96700399 (S / Square) - 96700290 (L / Rectangle).
As Thorn Axyl Trim
