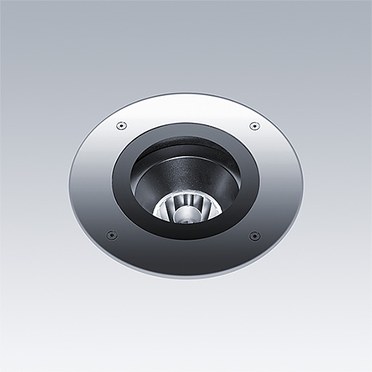

Cesar Opera, drive over

  • Cesar Opera, drive over

Cesar Opera DO is a drive over in-ground luminaire perfect for urban areas, residential projects and public parks

  • In-ground round luminaire available in five standard colours (stainless steel, grey, anthracite, black, white) and four sizes (small to extra large)
  • Multiple light distributions available: wide diffused effect, narrow beam, medium beam, asymmetric beam
  • Tilt +/- 15° for Narrow - Medium Beam
  • Tilt +/- 5° for Asymmetric Beam
  • Dostępność w wersji z 2700 K, 3000 K, 4000 K i CRI 90
  • Cesar Opera DO is available with Non-Dimmable or DALI2 connectivity (remote driver option for Small and Medium Size)
  • Obciążenie = 5000 kg - 30 km/h

Wykonanie

Obudowa z aluminium odlewanego ciśnieniowo.
Pierścień przedni ze stali nierdzewnej A4.
PrzezroczystE szkło hartowane.
Silikonowe uszczelki.
Śruby ze stali nierdzewnej A4.
Proces dwuwarstwowego malowania proszkowego.
Skrzynka do wbudowania z polipropylenu.
Zgodność z klasą C3 (standardowa klasa korozyjności wg ISO 9223 : 2012).

Montaż

Suitable for in-ground mounting with recessed box included.
Maximum cable size :
-Cesar Opera S/M HF : 3 x 1mm² - 3 x 2,5mm². Pre-wired 0.5m.
-Cesar Opera S/M RD : 2 x 1mm² - 2 x 2,5mm². Pre-wired 0.5m.
-Cesar Opera L/XL HFX : 5 x 1mm² - 5 x 2,5mm². Pre-wired 0.5m.
Remote DALI-2 driver to be ordered separately for small & medium.

Opis

To specify state:
Round recessed luminaire in a drive-over version, compatible with vehicle passageways on the luminaire. Available in several sizes (S, M, L and XL) and in stainless steel finish. The flush-mounting box for installation is supplied with the luminaire. Several light distributions are available: intensive, extensive, medium (L and XL only), asymmetrical (L and XL only). The optical module can be tilted (except for the extensive beam).
Available in 2700K, 3000K and 4000K with a CRI of 90, ideal for residential or public applications. Non-dimmable driver integrated on S and M versions, with the option of integrating DALI2 dimming via a remote driver to be ordered separately with an RD luminaire. Integrated DALI2 driver on L and XL versions.
Robustness: IP67 & IK10.
As Thorn Cesar Opera Drive Over

New Product
LumExpress Product
eControl Product

▼ Cesar Opera, drive over small

OpisMoc oprawy (W)Strumień św. oprawy (lm)   TypeWaga (kg)SAP Code
CESAR OPERA S DO 1L 927 NB HF SS4181LED1.8696700946
CESAR OPERA S DO 1L 927 NB RD SS4181LED1.8696701812
CESAR OPERA S DO 1L 930 NB HF SS4192LED1.8696700948
CESAR OPERA S DO 1L 930 NB RD SS4192LED1.8696701814
CESAR OPERA S DO 1L 940 NB HF SS4192LED1.8596700947
CESAR OPERA S DO 1L 940 NB RD SS4192LED1.8596701813
CESAR OPERA S DO 1L927 WB HF SS21100LED1.7496700403
CESAR OPERA S DO 1L927 WB RD SS21100LED1.7496701467
CESAR OPERA S DO 1L930 WB HF SS21200LED1.7496700405
CESAR OPERA S DO 1L930 WB RD SS21200LED1.7496701469
CESAR OPERA S DO 1L940 WB HF SS21300LED1.7496700404
CESAR OPERA S DO 1L940 WB RD SS21300LED1.7496701468

▼ Cesar Opera, drive over medium

OpisMoc oprawy (W)Strumień św. oprawy (lm)   TypeWaga (kg)SAP Code
CESAR OPERA M DO 1L 927 MB HF SS9411LED2.8496700955
CESAR OPERA M DO 1L 927 MB RD SS9411LED2.8496701821
CESAR OPERA M DO 1L 930 MB HF SS9434LED2.8496700957
CESAR OPERA M DO 1L 930 MB RD SS9434LED2.8496701823
CESAR OPERA M DO 1L 940 MB HF SS9458LED2.8496700956
CESAR OPERA M DO 1L 940 MB RD SS9458LED2.8496701822
CESAR OPERA M DO 1L927 WB HF SS41100LED2.8896700406
CESAR OPERA M DO 1L927 WB RD SS41100LED2.8896701470
CESAR OPERA M DO 1L930 WB HF SS31150LED2.6896700408
CESAR OPERA M DO 1L930 WB RD SS41150LED2.6896701472
CESAR OPERA M DO 1L940 WB HF SS41250LED2.6896700407
CESAR OPERA M DO 1L940 WB RD SS41250LED2.6896701471
CESAR OPERA M DO 4L 927 AS HF SS7449LED2.8996700952
CESAR OPERA M DO 4L 927 AS RD SS7449LED2.8996701818
CESAR OPERA M DO 4L 927 NB HF SS7449LED3.0796700949
CESAR OPERA M DO 4L 927 NB RD SS7449LED3.0796701815
CESAR OPERA M DO 4L 930 AS HF SS7480LED2.8996700954
CESAR OPERA M DO 4L 930 AS RD SS7480LED2.8996701820
CESAR OPERA M DO 4L 930 NB HF SS7488LED2.9096700951
CESAR OPERA M DO 4L 930 NB RD SS7488LED2.9096701817
CESAR OPERA M DO 4L 940 AS HF SS7497LED2.8996700953
CESAR OPERA M DO 4L 940 AS RD SS7497LED2.8996701819
CESAR OPERA M DO 4L 940 NB HF SS7498LED2.9096700950
CESAR OPERA M DO 4L 940 NB RD SS7498LED2.9096701816

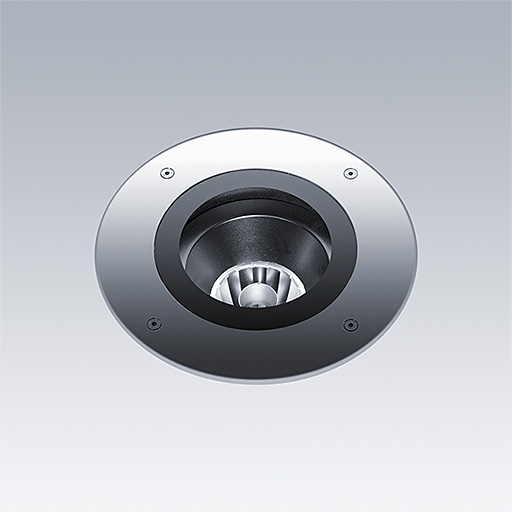

▼ Cesar Opera, drive over large

OpisMoc oprawy (W)Strumień św. oprawy (lm)   TypeWaga (kg)SAP Code
CESAR OPERA L DO 1L 927 MB HFX SS14940LED5.9096700964
CESAR OPERA L DO 1L 930 MB HFX SS14973LED5.9096700966
CESAR OPERA L DO 1L 940 MB HFX SS141027LED5.9096700965
CESAR OPERA L DO 1L927 WB HFX SS10156LED5.4796700409
CESAR OPERA L DO 1L930 WB HFX SS10165LED5.4796700411
CESAR OPERA L DO 1L940 WB HFX SS10178LED5.4796700410
CESAR OPERA L DO 9L 927 AS HFX SS171083LED5.9096700961
CESAR OPERA L DO 9L 927 NB HFX SS171011LED5.9396700958
CESAR OPERA L DO 9L 930 AS HFX SS171188LED5.9096700963
CESAR OPERA L DO 9L 930 NB HFX SS171143LED5.9396700960
CESAR OPERA L DO 9L 940 AS HFX SS171250LED5.9096700962
CESAR OPERA L DO 9L 940 NB HFX SS171179LED5.9396700959

▼ Cesar Opera, drive over extra-large

OpisMoc oprawy (W)Strumień św. oprawy (lm)   TypeWaga (kg)SAP Code
CESAR OPERA XL DO 16L 927 AS HFX SS332377LED10.4996700970
CESAR OPERA XL DO 16L 927 NB HFX SS332229LED10.4396700967
CESAR OPERA XL DO 16L 930 AS HFX SS332407LED9.9196700972
CESAR OPERA XL DO 16L 930 NB HFX SS332427LED9.7396700969
CESAR OPERA XL DO 16L 940 AS HFX SS332672LED9.8796700971
CESAR OPERA XL DO 16L 940 NB HFX SS332636LED9.7396700968
CESAR OPERA XL DO 1L 927 MB HFX SS332512LED9.9196700973
CESAR OPERA XL DO 1L 930 MB HFX SS332602LED9.9196700975
CESAR OPERA XL DO 1L 940 MB HFX SS332790LED9.9196700974
CESAR OPERA XL DO 1L927 WB HFX SS11263LED9.3296700400
CESAR OPERA XL DO 1L930 WB HFX SS11289LED8.6396700402
CESAR OPERA XL DO 1L940 WB HFX SS11320LED8.6396700401
