  • Cesar Stroll — CESAR STROLL H2500 1L930 S/S HFX BK

Cesar Stroll / CESAR STROLL H2500 1L930 S/S HFX BK

96700271

▼ Karta katalogowa

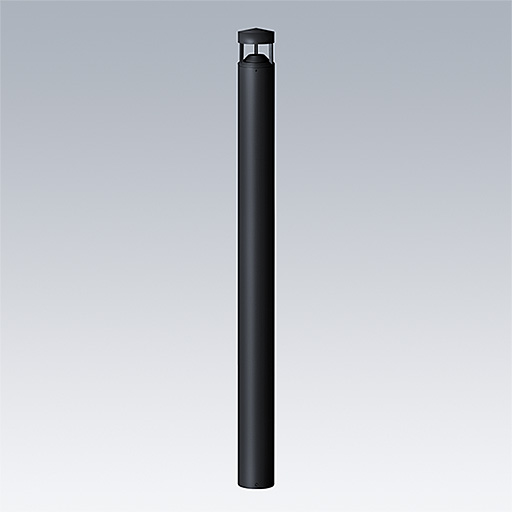

Cesar Stroll a free-standing, architectural LED luminaire for decorative facade lighting, Symmetric super-narrow distribution luminaire (superspot beam) distribution. DALI-2 dimmable LED driver. Class II electrical, IP65, Impact strength: IK10. Housing: Die-cast aluminium, powder coated black. Working ambient temperature: -20°C to +50°C. Complete with 3000K LED.

Dimensions: Ø200 x 2430 mm
Luminaire input power: 35.1 W
Luminaire luminous flux: 1941 lm
Luminaire efficacy: 55 lm/W
Weight: 21.35 kg

Mode selection
    • CE
    • IK10
    • IP65
    • SC2

    ▼ Dane fotometryczne

    Photometric configuration

    ▼ CalcExpress

    Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

    Step 1: Technical data
    (lm)
    (m)
    (m)
    (%)
    Step 2: Room Data
    (m)
    (m)
    (m)
    (m)
    (%)
    Step 3: Result
    (lx)
    (%)
