Avenue
Sustainable urban lighting without compromise. Performance and connectivity combined with circular design flexibility

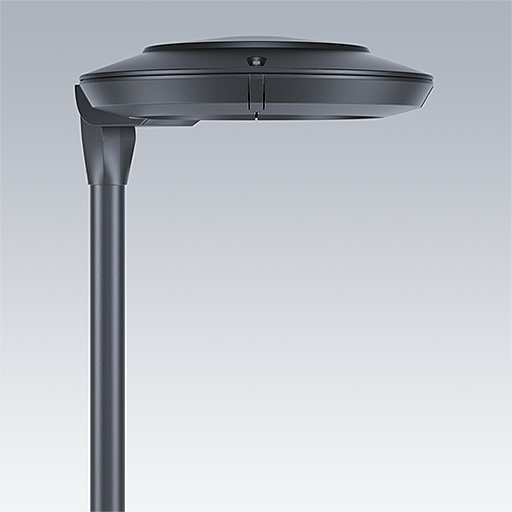

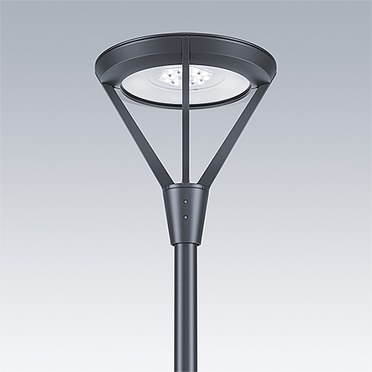

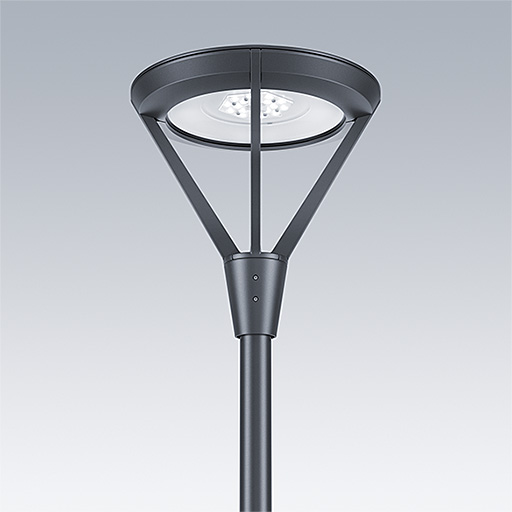

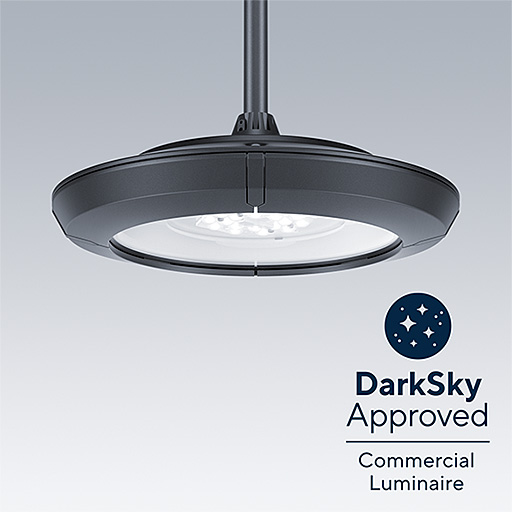

- Avenue offers a complete family in a single design language, to support all urban application demands. Product types post-top, lateral post-top, lateral arm and suspended, all from a single modular platform.
- Quad design innovation takes outdoor sustainability to the next level. Enabling IoT / Connectivity upgrade to ensure that any Avenue can meet the needs of today, with the flexibility to meet the needs of the future.
- To extend the product life cycle, Avenue features and all-in-one internal gear tray and light engine that can be accessed with just a single tool. Simplifying future refurbishment and upgrades.
- Designed with circular design rules, including circular systems and circular sourcing. Developed to minimize environmental impact, Avenue incorporates 68% recycled materials and achieves 80% end of life recyclability.

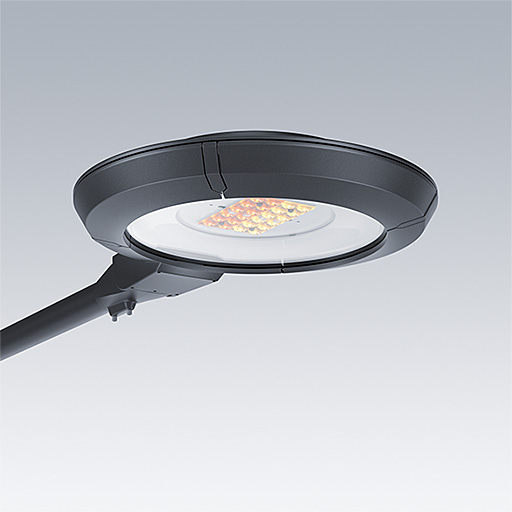

- Avenue brings the latest lighting technology to the urban environment. Zhaga Up / Down optimizes compatibility to Thorn UrbaSens, plus NightTune capability to protect dark skies and the nighttime environment.

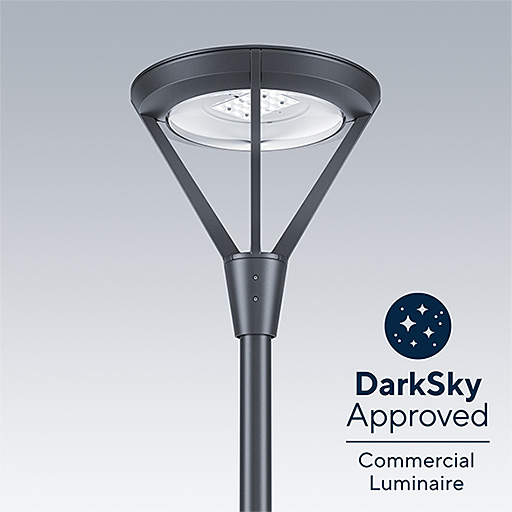

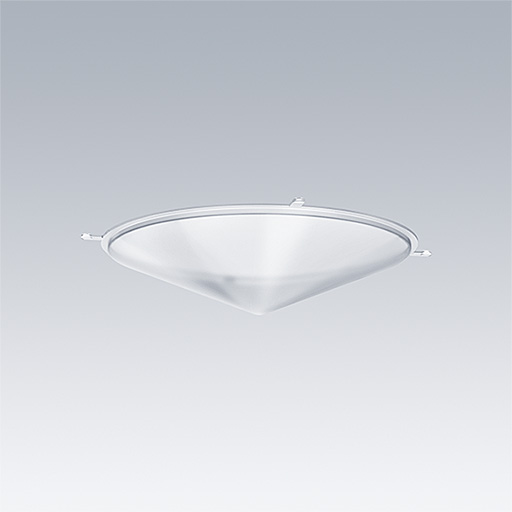

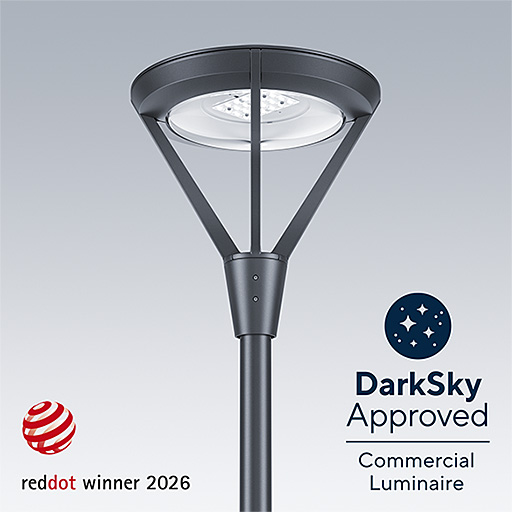

- Further design innovation includes a new-to-market optical system focused on visual comfort and a new approach to post-top bowl design, bringing together the visual benefits of a bowl with dark sky sensitivity.
Wykonanie
Obudowa oprawy wykonana z aluminium odlewanego ciśnieniowo (norma EN AC-44300).
Mocne rozwiązanie o doskonałej odporności na korozję – klasa C5 zgodnie z ISO 9223:2012.
Kolor antracytowy teksturowany (zbliżony do RAL 7043), a inne kolory RAL dostępne za pośrednictwem konfiguratora myProduct.
Wysoka odporność mechaniczna IK010, klasa szczelności IP66.
Montaż
Post-top spigot for mounting on Ø60 and Ø76 mm poles and, with rod accessory, flush mounted on Ø76 mm poles.
Lateral post-top and lateral arm mounting spigots for a single clean line from the luminaire to the supporting pole / column. Lateral arm variants flush mount as standard onto Ø42 mm poles.
Equipped with cable gland or pre-wired with H07RNF cable.
All-in-one internal gear tray and light engine for refurbishment that can be accessed and removed with a single tool.
Opis
To specify state:
Electrical class I and class II. Zhaga up, Zhaga down, integral Nema and photocell available. DALI-2 dimmable on-board driver variants. Bi-Power Line, Light Reduction Twin Phase, Bi-Power Switchable, Multi-Layer Dimming and Bi-Power variants. Built in surge protection up to 10KV single-pulse. CCT: 722 / 727 / 827 / 730 / 830 / 740 / 840. NightTune: CCT range 722-40. A-PEC and R-PEC optical options.
As Thorn Avenue
- New Product
