  • Cesar Stroll — CESAR STROLL H2500 1L940 S/S HFX GY

Cesar Stroll / CESAR STROLL H2500 1L940 S/S HFX GY

96700268

▼ Karta katalogowa

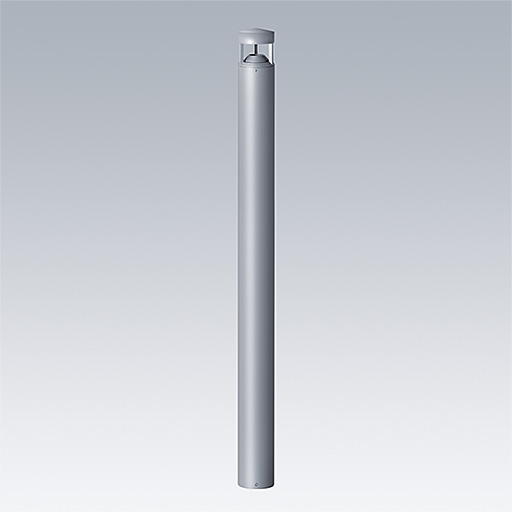

Cesar Stroll a free-standing, architectural LED luminaire for decorative facade lighting, Symmetric super-narrow distribution luminaire (superspot beam) distribution. DALI-2 dimmable LED driver. Class II electrical, IP65, Impact strength: IK10. Housing: Die-cast aluminium, powder coated grey. Working ambient temperature: -20°C to +50°C. Complete with 4000K LED.

Dimensions: Ø200 x 2430 mm
Luminaire input power: 35.1 W
Luminaire luminous flux: 2076 lm
Luminaire efficacy: 59 lm/W
Weight: 21.35 kg

Mode selection
    • CE
    • IK10
    • IP65
    • SC2
