Urba
Dla wyrafinowania i komfortu w życiu miejskim

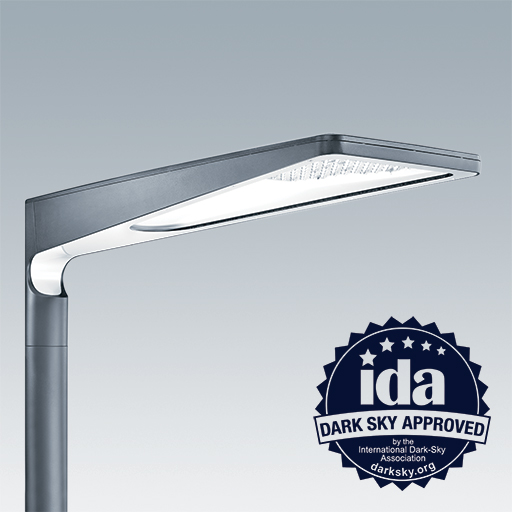

- Certyfikat „Dark Sky Approved” IDA
- *Pieczęć aprobaty IDA dla oprawy dotyczy tylko temperatur barwowych ≤ 3000 K i przezroczystych kloszy oraz tylko nachylenia maksymalnego +/- 10°. Oprawy muszą być montowane jako przebadane fotometrycznie.
- Zaprojektowana specjalnie dla Thorn przez światowej sławy architektów, planistów i projektantów Wilmotte & Industries
- Unikalna sygnatura w dzień i nocy dzięki systemowi optycznemu zaprojektowanemu ze specjalnym naciskiem na zapewnienie komfortu oświetlenia
- Wyjątkowa uniwersalność: dzięki 22 układom optycznym, 2 wielkościom i 3 opcjom montażu nadaje się do szerokiej gamy projektów oświetleniowych
- Należy do rodziny URBA, wraz z Urba Deco i słupkiem Urba
- Future proof with Zhaga interface Up, Down, Up and Down, NightTune and variable light distribution technologies
Wykonanie
URBA body: die cast aluminium EN-AC 44300 with zinc flake coated screws. Suitable for C5 (standard corrosion class according to ISO 9223 : 2012) without additional coating.
A large choice of colour painting as standard : texturized anthracite (ANT) by default - texturized black (BK), texturized light grey (GY), 48 other RAL possibilities.
Glass: tempered flat glass.
Frame: aluminium - powder polycarbonate, metallized aluminium and varnish
Deflector: ABS anti-UV white (RAL 9016)
Brackets with coordinated columns:
Painted galvanised steel, anthracite grey textured finish.
Two diameter conical columns dedicated to Urba post top lantern:
Painted aluminium, anthracite grey textured finish
Montaż
Available in 2 sizes and can be installed at various heights.
Luminaire: Supplied complete and ready to install, in a single box. Post-top mounting Ø60mm or Ø76mm, spigot length 100mm. Side-entry mounting Ø60mm with adjustable tilt angles: 0°, -5°, -10°. Recommended pre-wiring via MyProduct Configurator.
Brackets with coordinated columns. Mounting heights for Urba small: 4 to 6m, for Urba Large: 6 to 9m. Columns delivered with anchoring bolts. Aluminium columns (diameters: internal 76mm, external 96mm - internal 60mm and external 81mm) with flange mountings: 200 x 200mm. Galvanized steel columns with flange mountings: 300x300mm
Opis
To specify Urba luminaire state:
IP66, 2 sizes, corrosion resistant class 5 urban lantern with up to 11000 lm (small size) and 25 000 lm (large size), efficiency up to up to 150 lm/W (3000K @ 350 mA) and up to 165 lm/W (4000K @ 350 mA). Highly designed urban street lantern with 3 mounting options (side entry and post top mountings, wall mounting) and 22 highly efficient R-PEC optic. 60mm and 76mm diameters. Lateral mounting with tilt adjustments. 2200 K /2700 K / 3000 K /4000 K / 2200-4000 K / 2200-3000 K colour temperatures, as standard. A large choice of colour painting as standard : texturized anthracite (ANT) by default - texturized black (BK), texturized light grey (GY), texturized white (WH) 48 other RAL possibilities. Pre-wired (through configurator) with lengths of cable from 3 to 16m. Internal back light control louvre, as standard. 10Kv surge protection multi pulse and 20Kv single pulse, as standard. Zhaga up (ZU), Zhaga down (ZD) and both Zhaga up and down (ZUD) interfaces for compatibility with wireless functionalities in the market. DALI dimmable(HFX) / Bi-Power (BP) / Constant Light Output (CLO) / Bi-power Line (BPL) / Light Reduction Twin Phases (LRT) / Multi-Layers Dimming Scenario 1 (MLD1) / NightTune (722-40) and Variable light solution (722-40 with VM optic - 722-30 with VS optic). Can be combined with decorative Urba brackets and columns.
As Thorn Urba
▼ URBA S, Narrow road
| Opis | Moc oprawy (W) | Strumień św. oprawy (lm) | Type | Waga (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| UA 12L35-740 NR CL1 T60E ANT | 14 | 1965 | LED | 10.50 | 96671785 | ||||
| UA 12L35-740 NR CL2 T60E ANT | 14 | 1965 | LED | 10.50 | 96671764 | ||||
| UA 12L50-740 NR CL1 T60E ANT | 19 | 2707 | LED | 10.50 | 96671786 | ||||
| UA 12L50-740 NR CL2 T60E ANT | 19 | 2707 | LED | 10.50 | 96671765 | ||||
| UA 12L70-740 NR CL1 T60E ANT | 27 | 3636 | LED | 10.50 | 96671787 | ||||
| UA 12L70-740 NR CL2 T60E ANT | 27 | 3636 | LED | 10.50 | 96671766 | ||||
| UA 24L35-740 NR CL1 T60E ANT | 27 | 3922 | LED | 10.50 | 96671788 | ||||
| UA 24L35-740 NR CL2 T60E ANT | 27 | 3922 | LED | 10.50 | 96671767 | ||||
| UA 24L50-740 NR CL1 T60E ANT | 39 | 5393 | LED | 10.50 | 96671789 | ||||
| UA 24L50-740 NR CL2 T60E ANT | 39 | 5393 | LED | 10.50 | 96671768 | ||||
| UA 24L70-740 NR CL1 T60E ANT | 52 | 7221 | LED | 10.50 | 96671790 | ||||
| UA 24L70-740 NR CL2 T60E ANT | 52 | 7221 | LED | 10.50 | 96671769 | ||||
| UA 36L35-740 NR CL1 T60E ANT | 39 | 5861 | LED | 10.50 | 96671791 | ||||
| UA 36L35-740 NR CL2 T60E ANT | 39 | 5861 | LED | 10.50 | 96671770 | ||||
| UA 36L50-740 NR CL1 T60E ANT | 55 | 8038 | LED | 10.50 | 96671792 | ||||
| UA 36L50-740 NR CL2 T60E ANT | 55 | 8038 | LED | 10.50 | 96671771 | ||||
| UA 36L70-740 NR CL1 T60E ANT | 75 | 10709 | LED | 10.50 | 96671793 | ||||
| UA 36L70-740 NR CL2 T60E ANT | 75 | 10709 | LED | 10.50 | 96671772 |
