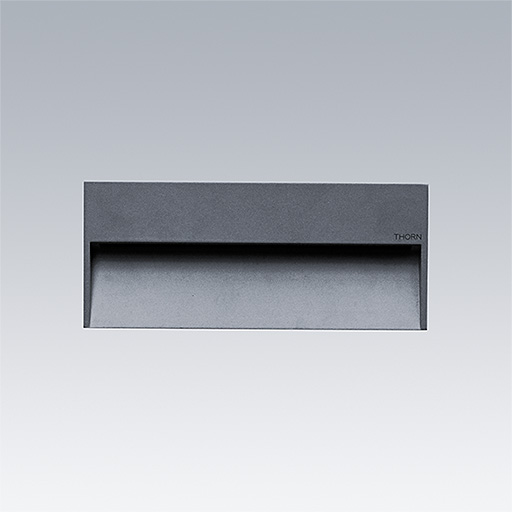

Axyl Stride

Axyl Stride is a familly of square and rectangle wall light with possibility to recess it for flush installation

Wall mounted or recessed wall luminaire available in four standard colours (grey, anthracite, black, white). And two size, small square shape and medium rectangular shape
Excellent asymmetric light distribution and complete glare control for a safe lighting installation and dark sky sensitive
Dostępność w wersji z 2700 K, 3000 K, 4000 K i CRI 90
Axyl Stride is available with Non-Dimmable or DALI2 connectivity (remote driver option)

Wykonanie

Die-cast and extruded aluminium housing.
Silicone gaskets.
Double Powder paint process.
Suitable for C3 (standard corrosion class according to ISO 9223 : 2012).

Montaż

Suitable for wall mounting with 2 oblong fixing points for positioning.
Fixing anchors and screw not delivered with product.
Maximum cable size :
-Axyl Stride HF : 3 x 1mm² - 3 x 2,5mm²
-Axyl Stride RD : 2 x 1mm² - 2 x 2,5mm²
Remote DALI-2 driver to be ordered separately.
Recessed box accessory to be ordered separately : 96700558 (square version) - 96700545 (rectangular version).

Opis

To specify state:
Wall light available in two sizes (square and rectangular) and four standard colours (grey, anthracite, black, white). Axyl Stride's slim design gives the illusion of a recessed luminaire with the ease of installation of a wall light.
A flush-mounted box is available to make the luminaire even more discreet. Its asymmetrical light distribution means it can be installed in a way that protects the night sky.
Available in 2700K, 3000K and 4000K with a CRI of 90, ideal for residential or public applications.
Non-dimmable driver integrated, possibility of integrating DALI2 dimming via a remote driver to be controlled separately with an RD luminaire.
Robustness: IP65 & IK08.
Recessed box: 96700558 (square version) - 96700545 (rectangular version).
As Thorn Axyl Stride
