  • Axyl Glow — AXYL GLOW S DWN 1L930 WB HF ANT

Axyl Glow / AXYL GLOW S DWN 1L930 WB HF ANT

96700153

▼ Karta katalogowa

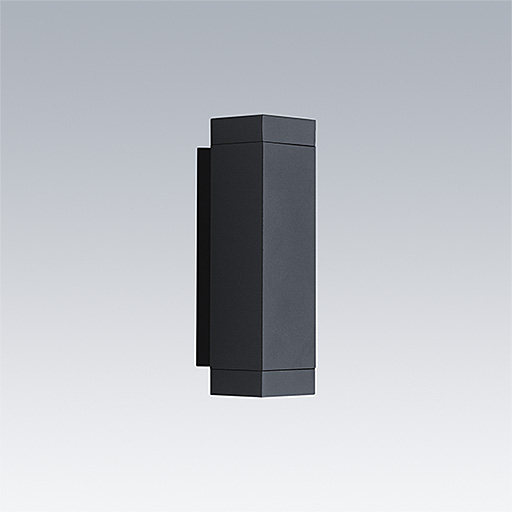

Axyl Glow, small down, a wall mounted, architectural LED luminaire for decorative facade lighting, with wide beam distribution. Class II electrical.. Fixed output LED driver. , IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured anthracite. Working ambient temperature: -20°C to +50°C. Complete with 3000K LED..

Dimensions: 60 x 200 x 72 mm
Luminaire input power: 4 W
Luminaire luminous flux: 95 lm
Luminaire efficacy: 24 lm/W
Weight: 1.4 kg

Mode selection
  • Pozycja lamp:STD - Standard
  • Źródło światła:LED
  • Strumień świetlny oprawy*:95 lm
  • Skuteczność oprawy*:24 lm/W
  • Współczynnik oddawania barw:90
  • Temperatura barwowa*:3000 Kelvin
  • Tolerancja miejscowa barwy (initial Mac Adam):3
  • Nominalna żywotność (B10)*:L80 70000 h przy 25 °C
  • Statecznik:1x LED_DRV
  • Moc opraw*:4 W Współczynnik mocy = 0,54
  • sterowanie:FIX
  • LED
  • CE
  • IK06
  • IP65
  • SC2
