Voyager Resist / VRESI 120 3TS E3 WH SMS
96685981
▼ Karta katalogowa

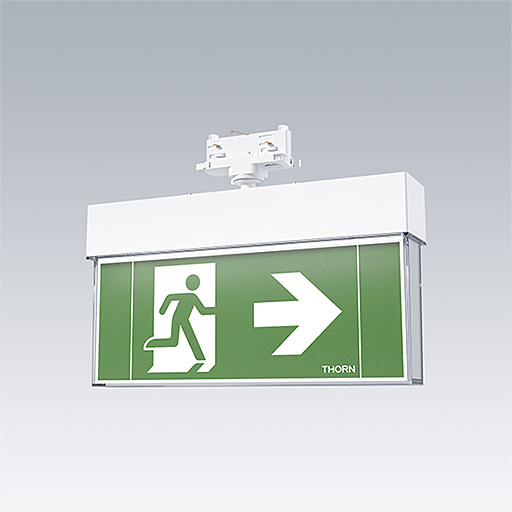

LED Safety sign luminaire in white. Supplied with a set of mountable direction signs (left, right, up, down and white for a single or double sided view) according ISO7010, for viewing from a maximum distance of 24m, with a luminance > 500 cd/m² in the white region.
With pre-assembled 3PH track adapter for simple and quick mounting to the "TRACK basic" system.
Self contained luminaire with integrated LiFePo4 battery pack, emergency operation time 3h (factory set), switchable to 1h. Maintained (factory set) or non-maintained operation.
For manual tests, restricted luminaire status display via status LED.
Input voltage Uin= 230V f=50/60Hz
ambient temperature: 5°C to +35°C
Safety class: SC2
Drgree of protection: IP20
Impact strength: IK03
Luminaire input power: 3.5 W
Weight: 1.35 kg
Housing made of polycarbonate PC. Luminaire internally wired halogen free & silicone free.
The robust, integrated battery comes with a five-year guarantee (applicable subject to the terms and conditions of and to the extent as set forth in the manufacturer's guarantee on Thorn products, which shall be applicable analogously and which is available under http://www.thornlighting.com/en/products/5-yearguarantee/5-year-warranty/terms-of-guarantee_en.pdf.
The battery guarantee shall not come into effect if the product has been installed later than three(3) months after delivery EXW (Incoterms 2010).
- LED
- CE
- GConReP
- Halogenfree
- IK03
- IP20
- LLedReP
- SC2
