  • Graffiti — GRAFFITI 3600-930HE SWI CONT SP BK

Graffiti / GRAFFITI 3600-930HE SWI CONT SP BK

96108777

▼ Karta katalogowa

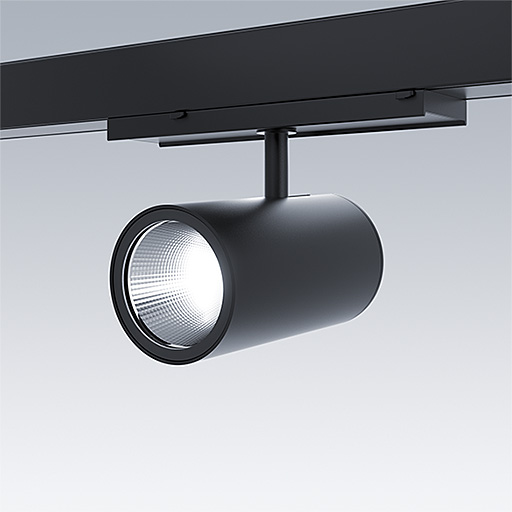

LED spotlight for CONTUS continuous-row systems with spot light distribution and stabilized color temperature. Electronic, switchable luminaire control gear. Class II electrical, IP20. Luminaire with CONTUS adapter for simple, rapid mounting of luminaire to CONTUS continuous-row systems. Body: die-cast aluminium black micro-textured paint. Reflector: PC sputtered. Spotlight rotatable through 337° and pivotable through 90°. Complete with 3000K LED, maximum efficiency

This article is single packed article and can also be ordered bulk packed.

Dimensions: Ø95 x 204 mm
Luminaire input power: 27 W
Luminaire luminous flux: 3400 lm
Luminaire efficacy: 126 lm/W
Weight: 0.85 kg

Mode selection
  • Pozycja lamp:STD - Standard
  • Źródło światła:LED
  • Strumień świetlny oprawy*:3400 lm
  • Skuteczność oprawy*:126 lm/W
  • Współczynnik oddawania barw:90
  • Statecznik:1 x 06891816 DRV OS IT FIT 30W 700mA 42V F
  • Temperatura barwowa*:3000 Kelvin
  • Tolerancja miejscowa barwy (initial Mac Adam):2
  • Średnia żywotność nominalna*:L80 50000 h przy 25 °C
  • Moc opraw*:27 W Współczynnik mocy = 0,96
  • sterowanie:SWI
  • Kategoria konserwacji CIE 97:D - Zamknięta IP2X
  • LED
  • CE
  • GLedNr
  • IP20
  • LLedNr
  • SC2
  • UKCA
