  • Beta Cell — BETA CELL 4100 Q625 940 HF

Beta Cell / BETA CELL 4100 Q625 940 HF

96222756

▼ Karta katalogowa

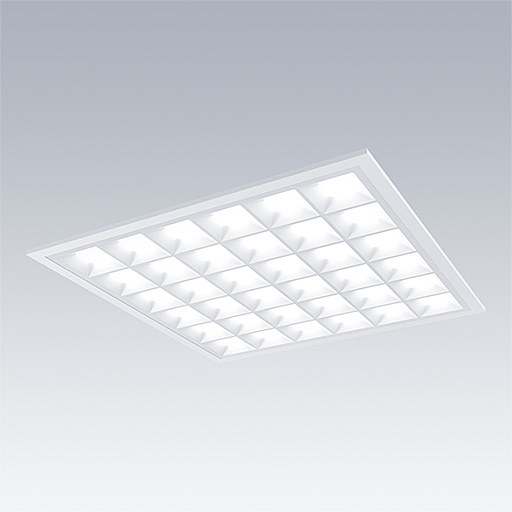

A square ceiling recessed LED luminaire with excellent glare control and high efficacy for office and education. The 36 LED cells (arranged in a 6x6 pattern) each have a prismatic primary lens to allow for higher light output with low glare and user comfort. Fixed output LED driver. Class II electrical, IP40, Impact strength: IK04. Body: sheet steel, white. Diffuser: prism structure. Complete with 4000K LED.

UGR < 19 and L65 < 3000 cd/m² as per EN 12464

Dimensions: 622 x 622 x 32 mm
Luminaire input power: 34 W
Luminaire luminous flux: 4426 lm
Luminaire efficacy: 130 lm/W
Weight: 2.2 kg

Mode selection
  • Pozycja lamp:STD - Standard
  • Źródło światła:LED
  • Strumień świetlny oprawy*:4426 lm
  • Skuteczność oprawy*:130 lm/W
  • Współczynnik oddawania barw:90
  • Temperatura barwowa*:4000 Kelvin
  • Tolerancja miejscowa barwy (initial Mac Adam):3
  • Średnia żywotność nominalna*:L80 50000 h przy 25 °C
  • Statecznik:1x LED_DRV
  • Moc opraw*:34 W Współczynnik mocy = 0,9
  • sterowanie:FIX
  • Kategoria konserwacji CIE 97:D - Zamknięta IP2X
  • LED
  • CE
  • EAC
  • NoIsol
  • GLedReP
  • 650°
  • IK04
  • IP20_IP40
  • LLedReP
  • SC2
  • UKCA
